DAMUL
제품상태 - 생산중

제품특징

DAMUL is an innovative and portable optical power checker accompanying 1-core loop back function. DAMUL can check SFP TX and RX power level by simply inserting SFP into it. If you use UPM (Universal SFP-typed Power checker Module) optionally provided, DAMUL can measure optical power. Also, when using SPM (SFP-typed Power checker Module) optionally provided, DAMUL can identify 18 CWDM wavelengths as well as its power automatically. DAMUL provide users high productivity for optical power checking work on fiber optic systems such as WDM-PON.


Introduction Video

 - Introduction Video (KOR)


- Introduction Video (ENG)


구성품

Specification - 규격 및 사양

 - DAMUL

Parameters

 Unit

Values

 Data Transter Rate

 bps

155M ~3.0G

 Interface

 SFP connector Cage

 LEDs

Power, Reacharge, Loop, Signal

 Slide switch

Converting Signal Mode To Loop Mode

 Transmission Distance

km

According to distance of SFP

 Wavelength

nm

According to Wavelength of SFP

Battery Type

3.7, Lithium-ion (USB Rechargeable)

 Operating Temperature

°C

-5 ~ 50

 Storage Temperature

°C

-10 ~ 70

 Dimension

mm

126 x 67 x 19.5

 Weight

9

163


- UPM

 Parameters

 Unit

 Values

 Measurement Wavelength

 nm

 1260 ~ 1620

 Power Display Range

 dBm

 -30 ~ +5

 Bandwidth

 nm

 ITU ± 6.5

 Measurement Unit



 dBm

 Display Resolution (Optic Power)

 dB

 0.1

 Power Accuracy

 dB

 ± 1.0

 Interface Connector



 SC/APC

 Fiber



 Universal (UPC/APC)

 Operating Temperature

 ℃

 -5 ~ 50

 Storage Temperature

 ℃

 -10 ~ 70

 Dimension

 mm

 13.3 x 67 x 11.8

 Weight

 g

 37

※ This product must be used with "DAMUL"


- SPM

 Parameters

 Unit

 Values

 Measurement Wavelength

 nm

 1260 ~ 1620

 Power Display Range

 dBm

 -30 ~ +5

 Center Wavelength

 nm

 1270/1290/1310/1330/1350/1370/1390/1410/1430/

 1450/1470/1490/1510/1530/1550/1570/1590/1610

 Bandwidth

 nm

 ITU ± 6.5

 Measurement Unit



 dBm

 Display Resolution (Wavelength)

 nm

 20

 Display Resolution (Optic Power)

 dB

 0.1

 Power Accuracy

 dB

 ± 0.5

 Interface Connector



 SC/APC

 Fiber



 Standard Single Mode (9/125 um)

 Operating Temperature

 ℃

 -5 ~ 50

 Storage Temperature

 ℃

 -10 ~ 70

 Dimension

 mm

 34 x 108 x 17.6

 Weight

 g

 37

※ This product must be used with "DAMUL"


Application - 용도

 DAMUL

Features

 - Checking optical power and identifying 18 CWDM wavelength

 - Available to check SFP TX & RX power level

 - Loopback the same signal of converted wavelengths into optical one-core structure

 - Available light source according to wavelengths of using SFP

 - USB rechargeable battery & Low voltage battery warning LED signal

 - Pocket-size and handy design

Applications

 - Installation & maintenance of optical communication network.

   (Optical repeater, 4G LTE, GE-PON, etc.)

 - Simple optical power measurements

 - Checking SFP or bidirectional SFP module operation

 UPM

Features

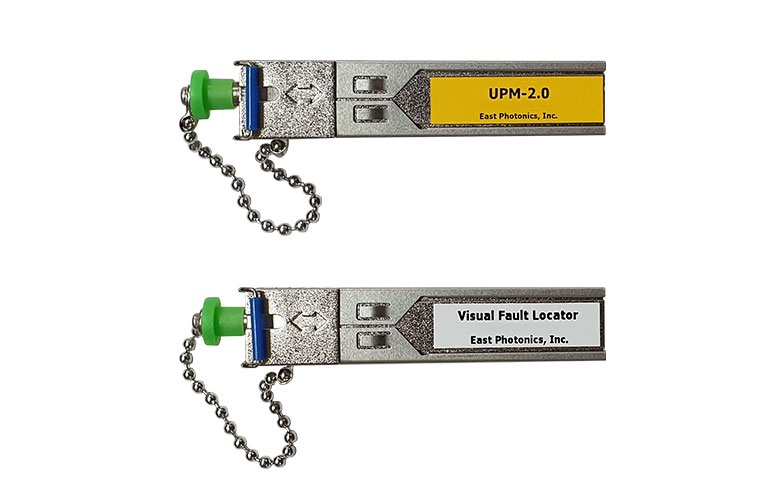

UPM (Universal SFP-Typed Power checker Module) provide very high productivity for power checking work on high density fiber optic systems and devices for FTTH, CWDM-PON and local network systems. UPM can measure optical power intensity.


 - SFP(Small Form-factor pluggable) type

 - Cover wide optical wavelength range

 - Low cost with high performance

 - Compact size and easy operation

 - High Reliability

Applications

 - Simple Optical Power Measurements

 - FTTH, PON Installation

 SPM

Features

SPM (SFP-Typed Power checker Module) provide very high productivity for power checking work on high density fiber optic systems and devices for CWDM-PON system and local network systems. SPM can identify 18 CWDM wavelengths and its power automatically.


 - SFP(Small Form-factor pluggable) type

 - Low cost with high performance

 - Compact size and easy operation

 - High Reliability

Applications

 - CWDM Wavelengths & Power Testing

 - Simple Optical Power Measurements

 - Coarse WDM Wavelength Distinction

 - FTTH, PON Installation
